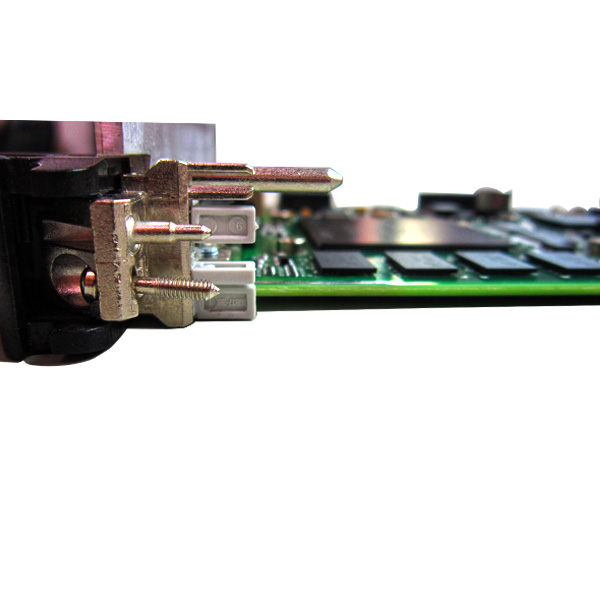

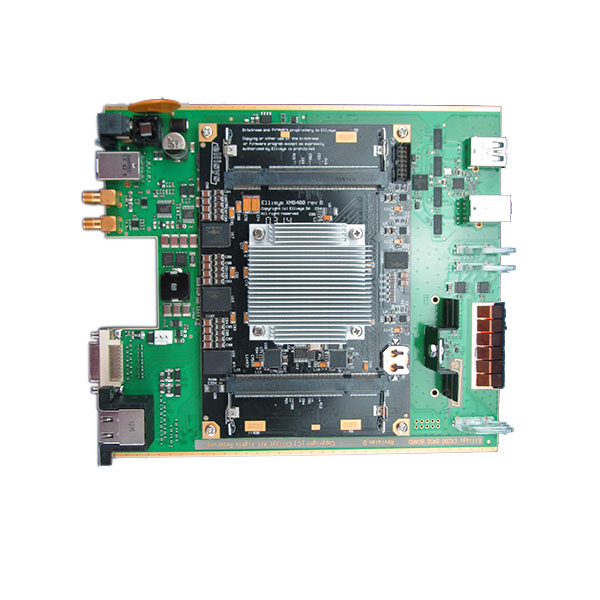

Railway Control System PCB and PCBA
Product Details
| Layers | 12 layers |
| Board thickness | 1.60 MM |
| Material | Isola 370hr |
| Copper thickness | 2OZ(70um) |
| Surface Finish | HASL lead free |
| Min Hole(mm) | 0.30mm via plugged with solder mask |
| Min Line Width(mm) | 0.10mm (4 mil) |
| Min Line Space(mm) | 0.10mm (4 mil) |
| Solder Mask | Green |
| Legend Color | White |
| Board size | 148*260mm |
| PCB Assembly | Mixed surface mount & through hole assembly |
| RoHS Complied | Lead free assembly process |
| Min components size | 0402 |
| Total components | 1095 per board |
| IC Package | BGA; QFN |
| BGA | 8 |
| BGA ball quantity | 1489 |
| Mimimum BGA spacing | 0.80 mm |
| Minimum IC spacing | 0.50 mm |
| Main IC | Maxim, ON Semiconductor, Micron, Texas Instruments, NXP Semiconductors, Linear, Fairchild Semiconductor, ST, Cypress Semi, Freescale, IDT |
| Test | AOI, X-Ray, Functional test |
| Conformal coating | 9-20557-LV Dymax |
| Application | Railway signal control system |
Industrial applications consist of various technologies applied to numerous industries. From printed circuit board assembly (PCBA) to full product assembly and manufacturing, it implies dealing with complex electronic circuit boards as well as mechanical enclosures (sheet metals, CNC, plastics), to reach the perfect result for our customers. Your EMS partner must be expert for years in electronic manufacturing solutions.
The industrial industry has been historically one of the major segment served by Yaheng Circuits yet we are now witnessing the Internet of Things, with a specific attention towards the Industrial Internet of Things (IIoT), which will bring connectivity and automation to factories and companies around the world.
To support such advancement, teaming up with the right partner is instrumental to bringing new products to market succesfully. At Yaheng Circuits, we offer the full array of services from design and specifications definition to mass-production at all of our 18 locations.
As an electronic contract manufacturing company and industrial electronics manufacturer, leader in our fields, we have integrated in our factories new methods brought with the industry 4.0, like: automation, artificial intelligence, cloud computing, 3D-Printing, Internet of Things platforms (IoT), big data and analytics.
Electronic manufacturing service provider for industrial, our capabilities include:
> ATM & Industrial machines
> Automation devices and equipment
> Machinery
> Vending machines
> Power systems
> Electrical transmissions
> Receivers, Transceivers
> Power tools
> Instrumentation devices and equipment
