Aluminum PCB Advanced Circuits
Aluminum PCB Advanced Circuits Specification

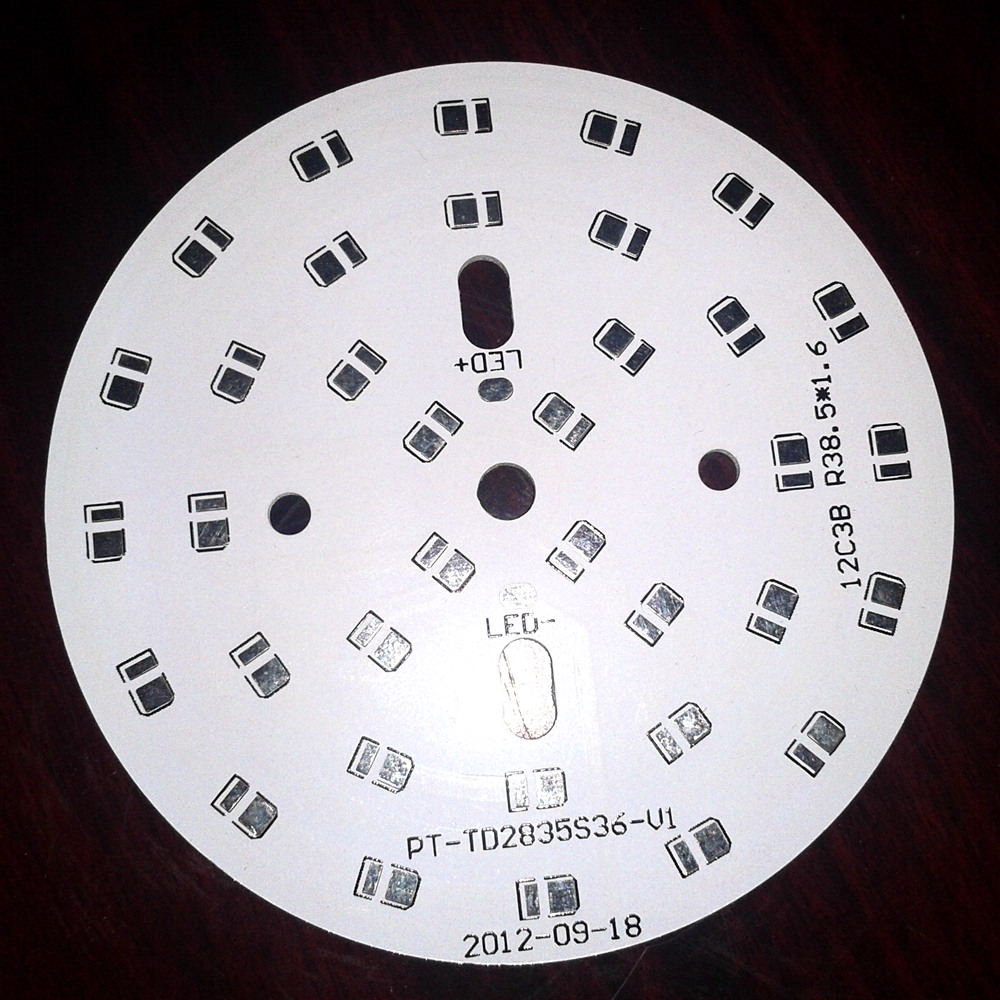

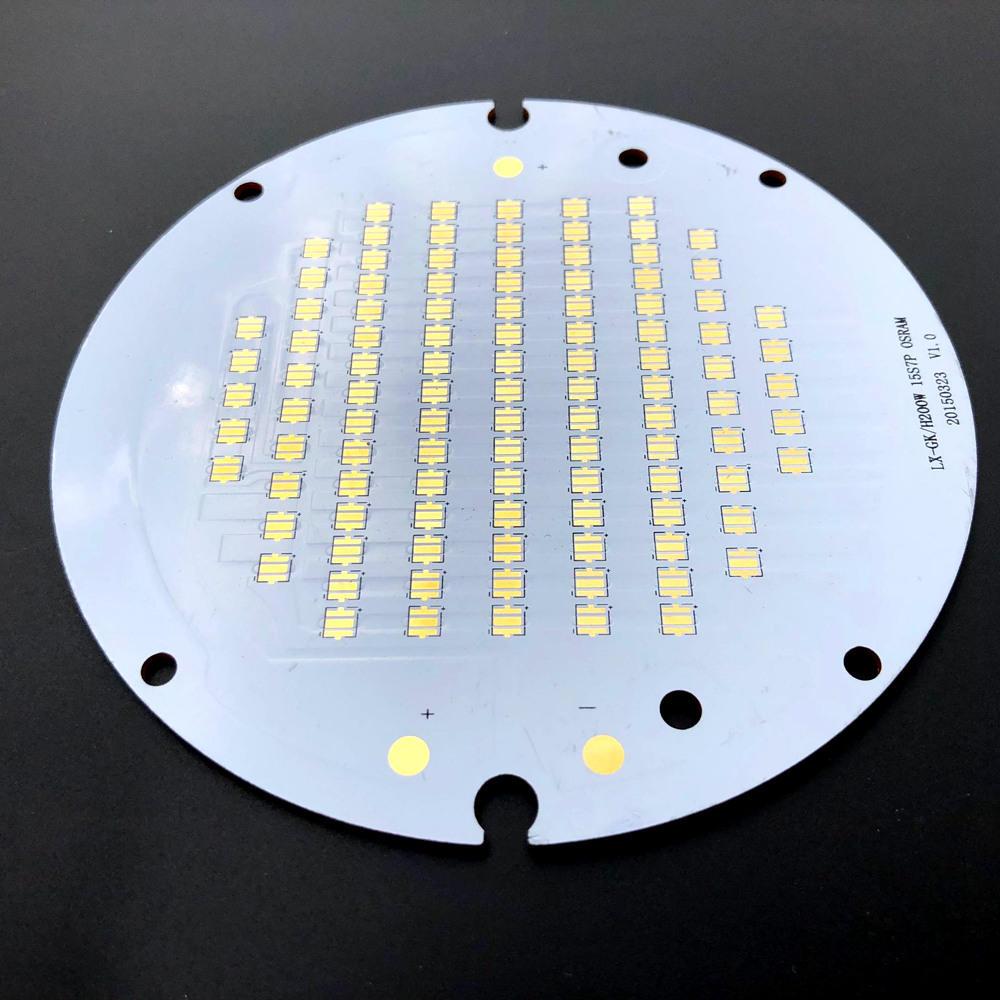

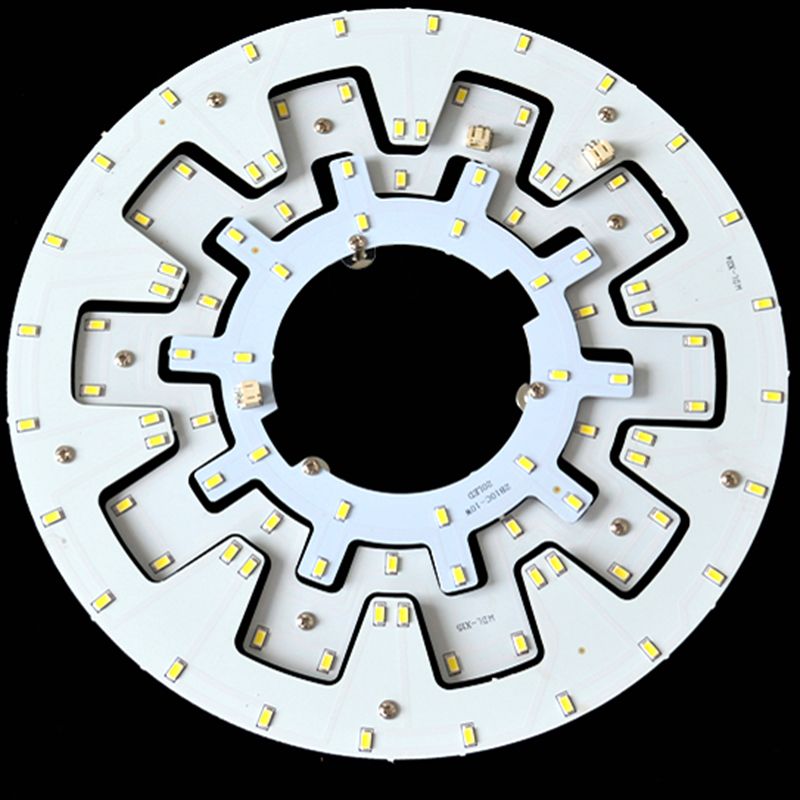

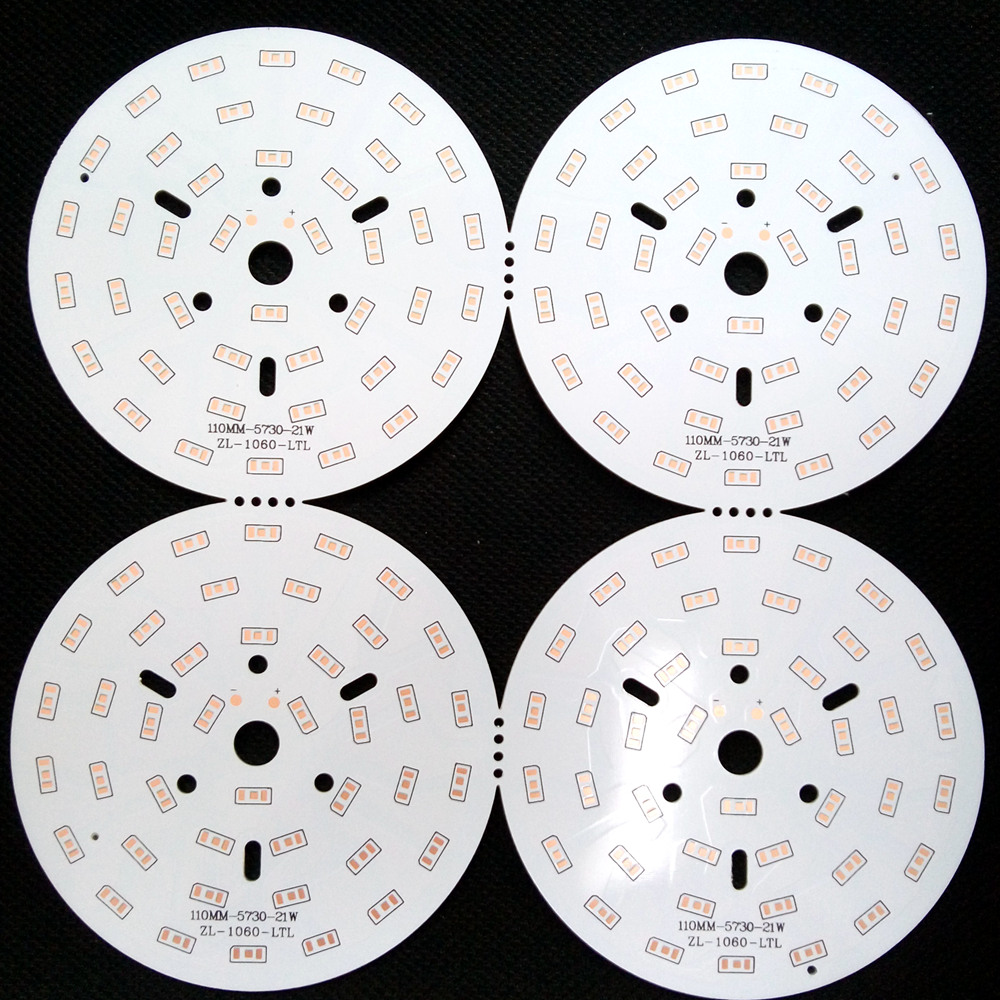

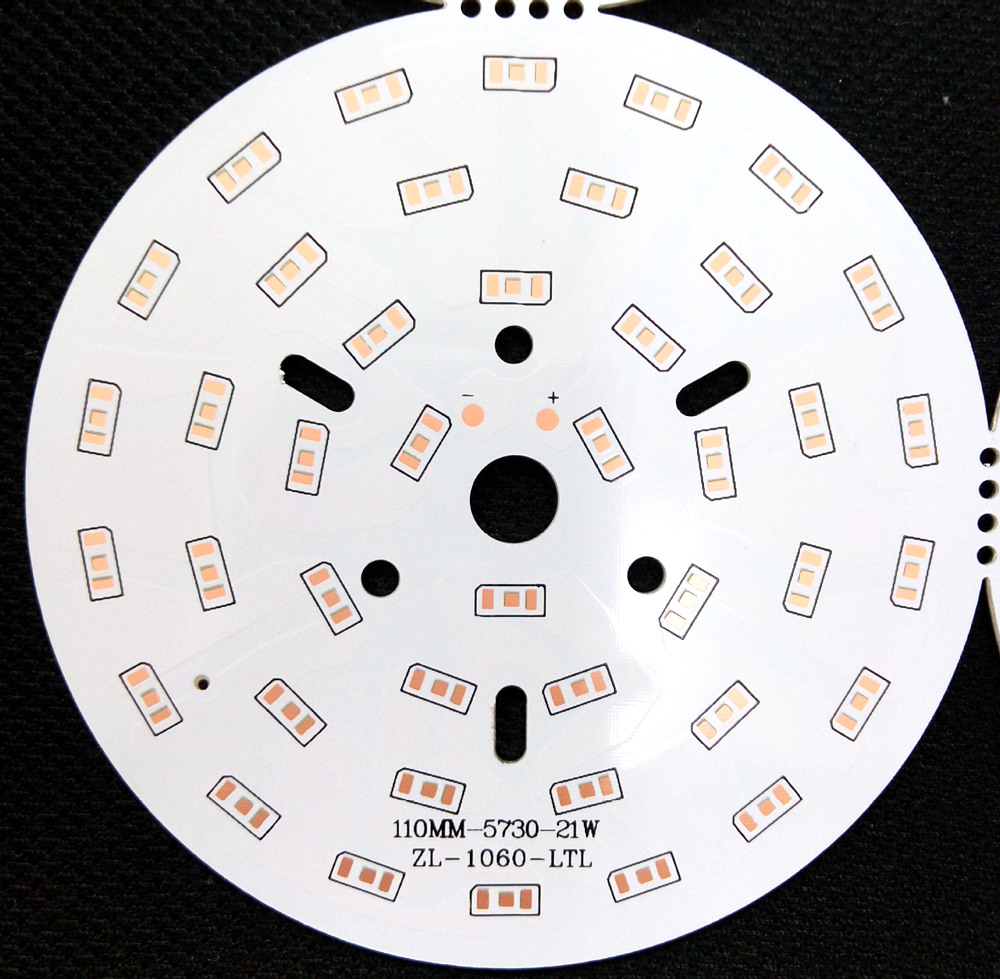

Among all metal core PCBs (aka MCPCBs, known for their ability to provide effective thermal dissipation for electronic products), Aluminum PCBs is the most common type - the base material consists of aluminum core with standard FR4. It features a thermal clad layer that dissipates heat in a highly efficient manner, while cooling components and increasing the overall performance of the products. Currently, Aluminum Backed PCBs is regarded as the solution to high power and tight tolerance applications. It can be used for LED light, leb bulb, let belt and other items.
Yaheng Circuits: An Experienced Metal Core PCB Manufacturer
Yaheng Circuits been manufacturing MCPCB Boards for 10+ years. Our full feature aluminum circuit boards making capabilities and Free DFM Check allow you to get high-quality aluminum PCBs done within budget. Our printed Aluminum PCBs are widely used for LED lighting, power equipment and automotive systems.
The following table presents some of our Aluminum Core materials:
| Items | Performance Index (Measured value) |
| Peeling strength (n/mm) | 1.8 |
| Insulation resistance (ω) | >1*10 g |
| Breakdown voltage (vdc) | >2 k |
| Soakable soldering (°C/m) | 280°C / 260°C, 1 min, no bubble & delamination |
| Thermal conductivity (ω/m-k) | >0.8 |
| Thermal resistance (°C/ω) | < 1.2 |
| Combustibility | fv-o |
| Dielectric constant (1mhz) | 4 |
| Dielectric loss angle (tangent) | 0.03 |
Check our Aluminum core PCB manufacturing capabilities in the following table:
| Feature | Capability |
| Quality Grade | Standard IPC 2 |
| Number of Layers | 4 - 24layers |
| Order Quantity | 1pc - 10000+pcs |
| Build Time | 2days - 5weeks |
| Material | Aluminum core (Domestic 1060), Copper core, FR4 covering |
| Board Size | Min 6*6mm | Max 610*610mm |
| Board Thickness | 0.8mm - 5.0mm |
| Copper Weight (Finished) | 0.5oz - 10.0oz |
| Min Tracing/Spacing | 4mil/4mil |
| Solder Mask Sides | As per the file |
| Solder Mask Color | Green, White, Blue, Black, Red, Yellow |
| Silkscreen Sides | As per the file |
| Silkscreen Color | White, Black, Yellow |
| Surface Finish | HASL - Hot Air Solder Leveling Lead Free HASL - RoHS ENIG - Electroless Nickle/Immersion Gold - RoHS |
| Min Annular Ring | 4mil |
| Min Drilling Hole Diameter | 6mil |
| Other Techniques | Countersink holes Screw holes |
Get Free Quotation of your Aluminum PCB Project
Upload your PCB design file (check our Preorder Checklist) to get Aluminum PCB fabrication price. We will NEVER share your project design with third party. Your design is safe with us.
Request Aluminum PCB Fabrication Quote
Should you have any question about Alumimum PCB design, manufacturing capabilities or your custom PCB project requires technique which are not listed in the above table, reach us here. One of our skillful engineers will respond very quickly.
